Trabalhando com várias fontes de dados no jaspersoft studio
Depois de poder adicionar uma fonte de dados personalizada do java bean a um relatório de acordo comAdicionar fonte de dados personalizada ao Jaspersoft Studio , Chego ao segundo ponto dos meus relatórios com jasper.
Eu tenho um relatório principal que usa uma base de dados como fonte de dados. Em seguida, adiciono uma fonte de dados bean.xml ao relatório e adiciono uma tabela ao relatório principal que usa essa fonte de dados bean.xml para obter java beans.
Meu objetivo é obter um valor de campo do relatório principal e manipular seu valor, depois preencher os beans com esses valores e, finalmente, preencher a tabela com os beans.
Para fazer isso, escrevi 3 classes que eu uso comoScriptlet noconjunto de dados da tabela:

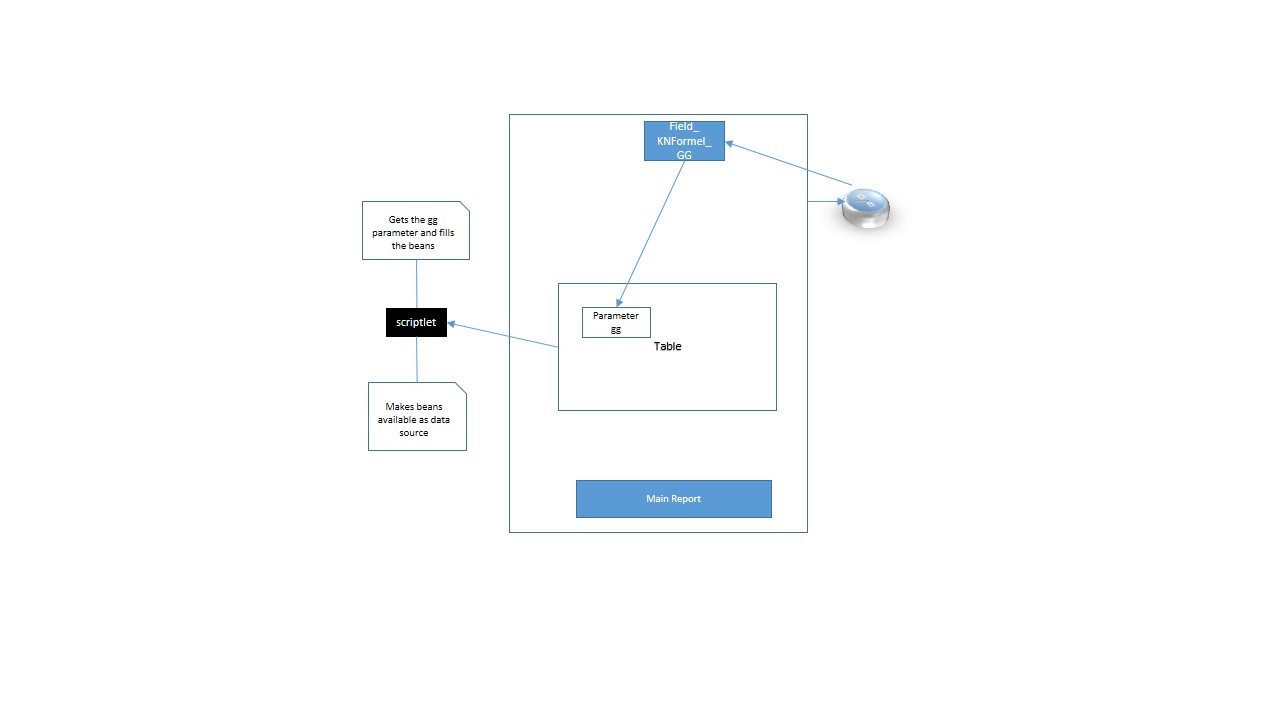

Esta é uma ilustração do que eu preciso fazer:
O problema está na classe FillTable, quando euString kNFormelGG = (String) this.getParameterValue("gg"); o bean.xml criado falha na conexão de teste comjava.lang.reflect.InvocationTargetException
Caused by: java.lang.NullPointerException
at net.sf.jasperreports.engine.JRAbstractScriptlet.getParameterValue(JRAbstractScriptlet.java:95)
at net.sf.jasperreports.engine.JRAbstractScriptlet.getParameterValue(JRAbstractScriptlet.java:86)
at org.iqtig.reporting.dataSource.bean.dataSourceXML.FillTable.fillTable(FillTable.java:45)
at org.iqtig.reporting.dataSource.bean.dataSourceXML.JRDataSourceFactory.createCollection(JRDataSourceFactory.java:27)
... 34 more
Se eu atribuir um valor fixo comoString kNFormelGG ="Test me" a conexão do bean não encontra erro e após atribuir bean.xml como o valor para o Adaptador de Dados Padrão no Conjunto de Dados1, ela preenche a tabela com valores estáticos. Como obter os dados de um parâmetro ou valor dinamicamente da fonte de dados do relatório principal e usá-los nos beans? Eu suponho que, no momento da chamada da classe factory estática do meu adaptador, os campos ainda estejam vazios. Talvez eu esteja errado, mas não encontrei nenhuma outra declaração para esse problema.
Classe BeanFactory
import java.util.Collection;
import net.sf.jasperreports.engine.JRDefaultScriptlet;
import net.sf.jasperreports.engine.JRScriptletException;
/**
* Factory for TableCellsBean Klasse
*
* @author iman.gharib
*/
public class JRDataSourceFactory extends JRDefaultScriptlet {
/**
* @return collection der TableCellsBean Objekten
* @throws JRScriptletException
*/
public static Collection<TableCellsBean> createCollection()
throws JRScriptletException {
FillTable ft = new FillTable();
Collection<TableCellsBean> reportRows = ft.fillTable();
return reportRows;
}
}
Classe Bean
public class TableCellsBean {
private String fieldName;
private String keyFormel;
private String mK;
private String notation;
private String item;
/**
* Constructor.
*
* @param fieldName
* @param keyFormel
* @param mK
* @param notation
* @param item
*/
public TableCellsBean(final String fieldName, final String keyFormel, final String mK, final String notation, final String item) {
this.fieldName = fieldName;
this.keyFormel = keyFormel;
this.mK = mK;
this.notation = notation;
this.item = item;
}
/**
* Constructo Leer
*/
public TableCellsBean() {
}
public TableCellsBean getme() {
return this;
}
// getter and setters
}
Classe para preparar e criar beans
public class FillTable extends JRDefaultScriptlet {
@Override
public void afterColumnInit()
throws JRScriptletException {
fillTable();
}
public ArrayList<String> splitGGArray(final String kNFormelGG) {
ArrayList<String> fieldNames = new ArrayList<>();
String[] array = (kNFormelGG.split(" "));
for (String sub : array) {
fieldNames.add(sub);
}
return fieldNames;
}
public Collection<TableCellsBean> fillTable()
throws JRScriptletException {
// gg is a parameter for table dataset. It is mapped to KN_FormelGG
// which comes from the main report data base
String kNFormelGG = (String) this.getParameterValue("gg");
List<TableCellsBean> listTableCells = new ArrayList<>();
// TableCellsBean tableCell = new TableCellsBean();
for (String fn : splitGGArray(kNFormelGG)) {
listTableCells.add(new TableCellsBean(fn, fn, fn, fn, fn));
// listTableCells.add(tableCell);
}
// JRBeanCollectionDataSource tableCellJRBean = new JRBeanCollectionDataSource(listTableCells);
// Map<String, Object> parameters = new HashMap<>();
// parameters.put("FieldDataSource", tableCellJRBean);
return listTableCells;
}
}
JRXML
<?xml version="1.0" encoding="UTF-8"?>
<!-- Created with Jaspersoft Studio version 6.3.0.final using JasperReports Library version 6.3.0 -->
<!-- 2016-08-08T14:30:03 -->
<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="main" pageWidth="595" pageHeight="842" columnWidth="555" leftMargin="20" rightMargin="20" topMargin="20" bottomMargin="20" uuid="4f1480cf-f8f9-420f-96b4-7fc1e41e791b">
<property name="com.jaspersoft.studio.data.sql.tables" value=""/>
<property name="com.jaspersoft.studio.data.defaultdataadapter" value="QIDBReport"/>
<style name="Table_TH" mode="Opaque" backcolor="#F0F8FF">
<box>
<pen lineWidth="0.5" lineColor="#000000"/>
<topPen lineWidth="0.5" lineColor="#000000"/>
<leftPen lineWidth="0.5" lineColor="#000000"/>
<bottomPen lineWidth="0.5" lineColor="#000000"/>
<rightPen lineWidth="0.5" lineColor="#000000"/>
</box>
</style>
<style name="Table_CH" mode="Opaque" backcolor="#BFE1FF">
<box>
<pen lineWidth="0.5" lineColor="#000000"/>
<topPen lineWidth="0.5" lineColor="#000000"/>
<leftPen lineWidth="0.5" lineColor="#000000"/>
<bottomPen lineWidth="0.5" lineColor="#000000"/>
<rightPen lineWidth="0.5" lineColor="#000000"/>
</box>
</style>
<style name="Table_TD" mode="Opaque" backcolor="#FFFFFF">
<box>
<pen lineWidth="0.5" lineColor="#000000"/>
<topPen lineWidth="0.5" lineColor="#000000"/>
<leftPen lineWidth="0.5" lineColor="#000000"/>
<bottomPen lineWidth="0.5" lineColor="#000000"/>
<rightPen lineWidth="0.5" lineColor="#000000"/>
</box>
</style>
<subDataset name="Dataset1" uuid="5677929d-813b-4d39-828c-de966a9d7689">
<property name="com.jaspersoft.studio.data.defaultdataadapter" value="bean.xml"/>
<property name="net.sf.jasperreports.data.adapter" value="bean.xml"/>
<scriptlet name="Scriptlet_1" class="org.iqtig.reporting.dataSource.bean.mapBeanAsDatasource.JRDataSourceFactory"/>
<parameter name="gg" class="java.lang.String"/>
<field name="item" class="java.lang.String">
<fieldDescription><![CDATA[item]]></fieldDescription>
</field>
<field name="fieldName" class="java.lang.String">
<fieldDescription><![CDATA[fieldName]]></fieldDescription>
</field>
<field name="me" class="org.iqtig.reporting.dataSource.bean.dataSourceXML.TableCellsBean">
<fieldDescription><![CDATA[me]]></fieldDescription>
</field>
<field name="keyFormel" class="java.lang.String">
<fieldDescription><![CDATA[keyFormel]]></fieldDescription>
</field>
<field name="mK" class="java.lang.String">
<fieldDescription><![CDATA[mK]]></fieldDescription>
</field>
</subDataset>
<parameter name="LB_ID" class="java.lang.Integer">
<defaultValueExpression><![CDATA[62]]></defaultValueExpression>
</parameter>
<parameter name="KN_OffeziellGruppe" class="java.lang.Integer">
<defaultValueExpression><![CDATA[3]]></defaultValueExpression>
</parameter>
<parameter name="FieldDataSource" class="net.sf.jasperreports.engine.data.JRBeanCollectionDataSource" isForPrompting="false"/>
<parameter name="KN_FormelGG" class="java.lang.String" isForPrompting="false"/>
<queryString>
<![CDATA[select * from "KennzahlReferenz2015_QIBericht", "Images"
where LB_ID = $P{LB_ID}
and KN_OffiziellGruppe = $P{KN_OffeziellGruppe}
and IMG_ID = 1]]>
</queryString>
<field name="QI_Praefix" class="java.lang.String"/>
<field name="KN_Id" class="java.lang.Integer"/>
<field name="bewertungsArtTypNameKurz" class="java.lang.String"/>
<field name="refbereich" class="java.lang.String"/>
<field name="refbereichVorjahres" class="java.lang.String"/>
<field name="KN_GGAlleinstehend" class="java.lang.String"/>
<field name="erlaueterungDerRechregeln" class="java.lang.String"/>
<field name="teildatensatzbezug" class="java.lang.String"/>
<field name="mindesanzahlZaeler" class="java.lang.Integer"/>
<field name="mindesanzahlNenner" class="java.lang.Integer"/>
<field name="KN_FormelZ" class="java.lang.String"/>
<field name="KN_FormelGG" class="java.lang.String"/>
<field name="verwendeteFunktionen" class="java.lang.String"/>
<field name="idLb" class="java.lang.String"/>
<field name="LB_LangBezeichnung" class="java.lang.String"/>
<field name="LB_ID" class="java.lang.Integer"/>
<field name="nameAlleinstehend" class="java.lang.String"/>
<field name="KN_BezeichnungAlleinstehendKurz" class="java.lang.String"/>
<field name="QI_ID" class="java.lang.Integer"/>
<field name="IMG_ID" class="java.lang.Integer"/>
<field name="Name" class="java.lang.String"/>
<field name="Image" class="java.lang.Object"/>
<group name="id" isStartNewPage="true">
<groupExpression><![CDATA[$F{KN_Id}]]></groupExpression>
<groupHeader>
<band height="44"/>
</groupHeader>
<groupFooter>
<band height="50"/>
</groupFooter>
</group>
<background>
<band splitType="Stretch"/>
</background>
<title>
<band height="44" splitType="Stretch"/>
</title>
<pageHeader>
<band height="35" splitType="Stretch"/>
</pageHeader>
<columnHeader>
<band height="34" splitType="Stretch"/>
</columnHeader>
<detail>
<band height="149" splitType="Stretch">
<componentElement>
<reportElement x="170" y="20" width="350" height="100" uuid="38d917fb-dfc2-4c08-890a-09cfe6e2214d">
<property name="com.jaspersoft.studio.layout" value="com.jaspersoft.studio.editor.layout.VerticalRowLayout"/>
<property name="com.jaspersoft.studio.table.style.table_header" value="Table_TH"/>
<property name="com.jaspersoft.studio.table.style.column_header" value="Table_CH"/>
<property name="com.jaspersoft.studio.table.style.detail" value="Table_TD"/>
<property name="net.sf.jasperreports.export.headertoolbar.table.name" value=""/>
<property name="com.jaspersoft.studio.components.autoresize.proportional" value="true"/>
</reportElement>
<jr:table xmlns:jr="http://jasperreports.sourceforge.net/jasperreports/components" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports/components http://jasperreports.sourceforge.net/xsd/components.xsd" whenNoDataType="AllSectionsNoDetail">
<datasetRun subDataset="Dataset1" uuid="1b3548f6-7d6b-4070-bb8e-aaefbabdc7c9">
<datasetParameter name="gg">
<datasetParameterExpression><![CDATA[$F{KN_FormelGG}]]></datasetParameterExpression>
</datasetParameter>
</datasetRun>
<jr:column width="70" uuid="048812d7-0ed1-4db8-a09a-e6242f77c6ce">
<property name="com.jaspersoft.studio.components.table.model.column.name" value="Column1"/>
<jr:tableHeader style="Table_TH" height="30" rowSpan="1"/>
<jr:detailCell style="Table_TD" height="30">
<textField>
<reportElement x="0" y="0" width="70" height="30" uuid="c5aaea84-1367-41df-be8d-7f71e3ea5153"/>
<textFieldExpression><![CDATA[$F{item}]]></textFieldExpression>
</textField>
</jr:detailCell>
</jr:column>
<jr:column width="70" uuid="11b85ada-c9fe-42b6-a646-8bd1697cdec2">
<property name="com.jaspersoft.studio.components.table.model.column.name" value="Column2"/>
<jr:tableHeader style="Table_TH" height="30" rowSpan="1"/>
<jr:detailCell style="Table_TD" height="30">
<textField>
<reportElement x="0" y="0" width="70" height="30" uuid="728ff44d-1dbd-404c-b8b3-7cc0e1f07f60"/>
<textFieldExpression><![CDATA[$F{fieldName}]]></textFieldExpression>
</textField>
</jr:detailCell>
</jr:column>
<jr:column width="70" uuid="892f30cb-fb41-444f-889b-1e005484c35e">
<property name="com.jaspersoft.studio.components.table.model.column.name" value="Column3"/>
<jr:tableHeader style="Table_TH" height="30" rowSpan="1"/>
<jr:detailCell style="Table_TD" height="30">
<textField>
<reportElement x="0" y="0" width="70" height="30" uuid="e38ac951-71bc-45a6-8ed2-313805a77050"/>
<textFieldExpression><![CDATA[$F{keyFormel}]]></textFieldExpression>
</textField>
</jr:detailCell>
</jr:column>
<jr:column width="70" uuid="7d0d700a-5a75-4c26-94c0-9ef7c53bd719">
<property name="com.jaspersoft.studio.components.table.model.column.name" value="Column4"/>
<jr:tableHeader style="Table_TH" height="30" rowSpan="1">
<textField>
<reportElement x="0" y="0" width="70" height="30" uuid="68577007-0344-406c-8aa2-3127d1da1c65"/>
</textField>
</jr:tableHeader>
<jr:detailCell style="Table_TD" height="30">
<textField>
<reportElement x="0" y="0" width="70" height="30" uuid="873d63c1-1b91-4441-b7bd-f67db7729e7f"/>
<textFieldExpression><![CDATA[$F{mK}]]></textFieldExpression>
</textField>
</jr:detailCell>
</jr:column>
<jr:column width="70" uuid="cf5a1a2f-594d-429f-8925-62d001e1dd00">
<property name="com.jaspersoft.studio.components.table.model.column.name" value="Column5"/>
<jr:tableHeader style="Table_TH" height="30" rowSpan="1">
<textField>
<reportElement x="0" y="0" width="70" height="30" uuid="7fb46eb8-d0e1-44ab-89f9-ec31d49b8109"/>
<textFieldExpression><![CDATA[$P{gg}]]></textFieldExpression>
</textField>
</jr:tableHeader>
<jr:detailCell style="Table_TD" height="30"/>
</jr:column>
</jr:table>
</componentElement>
<textField>
<reportElement x="20" y="80" width="100" height="30" uuid="b89cd04c-2569-43ef-9730-445b874855dd"/>
<textFieldExpression><![CDATA[$F{KN_FormelGG}]]></textFieldExpression>
</textField>
<staticText>
<reportElement x="20" y="32" width="100" height="30" uuid="e91b4461-5e53-4f85-8992-14e69a1aa05f"/>
<text><![CDATA[KN_FormelGG]]></text>
</staticText>
</band>
</detail>
<columnFooter>
<band height="45" splitType="Stretch"/>
</columnFooter>
<pageFooter>
<band height="54" splitType="Stretch"/>
</pageFooter>
<summary>
<band height="42" splitType="Stretch"/>
</summary>
</jasperReport>
