Los prefabricados de IU se crean instancias debajo del lienzo
Estoy tratando de copiar el sistema de salud Zelda. El código se ve muy bien y funciona bien.

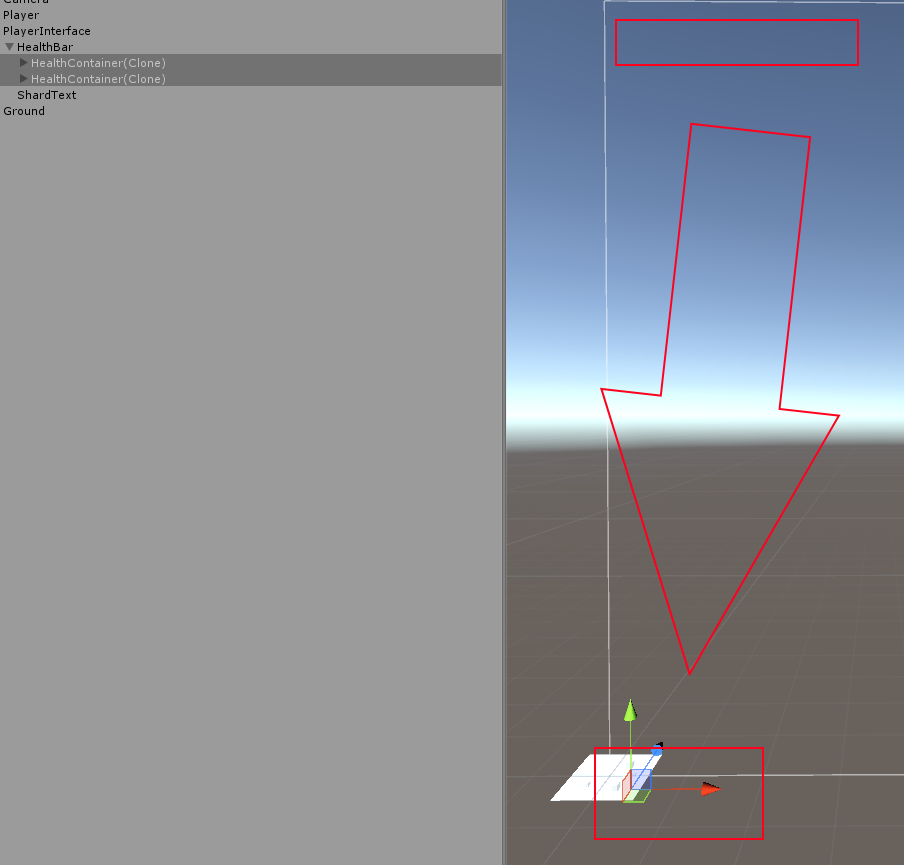

Pero los contenedores del corazón están mal colocados. Se instancian debajo del lienzo.
Este es el código importante, los contenedores del corazón son correctos, justo en la posición incorrecta.
El cálculo de x e y es correcto, pero en el lienzo no lo es.
private Transform healthBar = GameObject.FindGameObjectWithTag("HealthController").transform; // container for the heartContainers
private GameObject healthWrapperObject = Resources.Load("HealthContainer") as GameObject; // the backgroundImage and parent of the heart
private List<Image> healthContainers = new List<Image>(); // list of hearts for later usages
private int maxHealth = 6;
private int currentHealth;
private int healthPerHealthContainer = 4; // 4 lifepoints per heart
private int healthContainersPerRow = 5; // 5 hearts per row
private int healthContainerStartPositionX = 0; // Healthbar starts at 0 on x
private int healthContainerStartPositionY = 0; // Healthbar starts at 0 on y
private int healthContainerSpacingX = 10; // horizontal spacing
private int healthContainerSpacingY = -10; // vertical spacing
private void Start()
{
currentHealth = maxHealth;
InitializeHealthBar();
}
public void InitializeHealthBar()
{
int neededHealthContainers = maxHealth % healthPerHealthContainer == 0 ? maxHealth / healthPerHealthContainer : maxHealth / healthPerHealthContainer + 1; // Calculate the needed container count
int counter = 0; // counts the hearts per row
int x = healthContainerStartPositionX; // horizontal position of the heartContainer
int y = healthContainerStartPositionY; // vertical position of the heartContainer
for (int i = 0; i < neededHealthContainers; i++)
{
counter++;
if (counter >= healthContainersPerRow) // start a new line after 5 hearts per row
{
x = healthContainerStartPositionX; // move back to the left
y += healthContainerSpacingY; // go for the next line
counter = 0; // reset the counter
}
else
x += healthContainerSpacingX; // place the new container right next to the previous
Transform newHealthContainerTransform = Instantiate(healthWrapperObject, new Vector2(x, y), healthWrapperObject.transform.rotation).transform; // create the healthContainer parent / backgroundImage
newHealthContainerTransform.SetParent(healthBar); // take the container and make it a child of the healthBar
healthContainers.Add(newHealthContainerTransform.GetChild(0).GetComponent<Image>()); // get the heart of the heartContainer and add it to the heartList
}
}

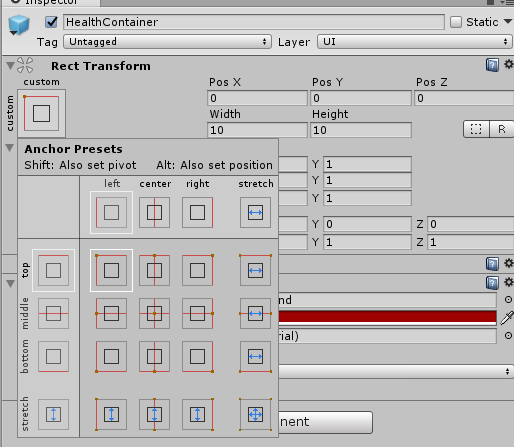

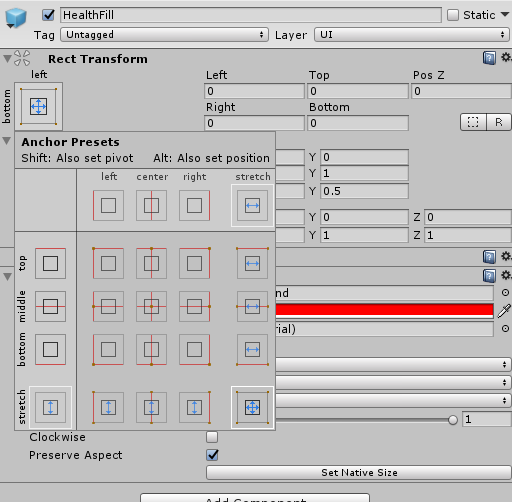

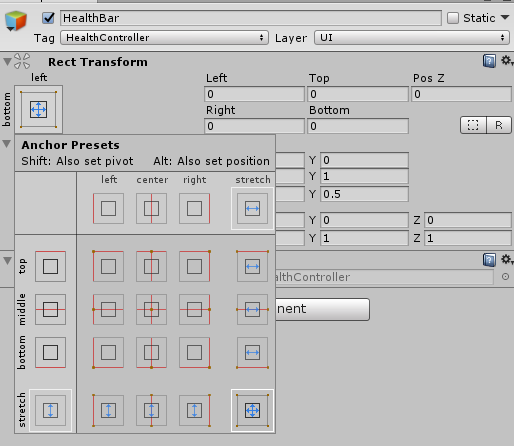

Agregué la configuración de transformación para el healthBar, el healthContainer / backgroundImage y el corazón ("healthfill").
En los 3 elementos presioné Strg + Alt y Shift para anclarlos.
El contenedor de corazón debe agregarse a la barra de salud, el corazón es hijo del contenedor de corazón y está configurado para estirarse (debe ser del mismo tamaño que su padre)
¿Por qué los objetos prefabricados de la interfaz de usuario se instancian debajo del lienzo?
