WCF: la cláusula EncryptedKey no estaba envuelta con el token de cifrado requerido 'System.IdentityModel.Tokens.X509SecurityToken'

Estoy tratando de usar el cliente WCF para conectarme a servicios web basados en Java

Los certificados que he recibido (autofirmado) funcionan perfectamente en SOAPUI.

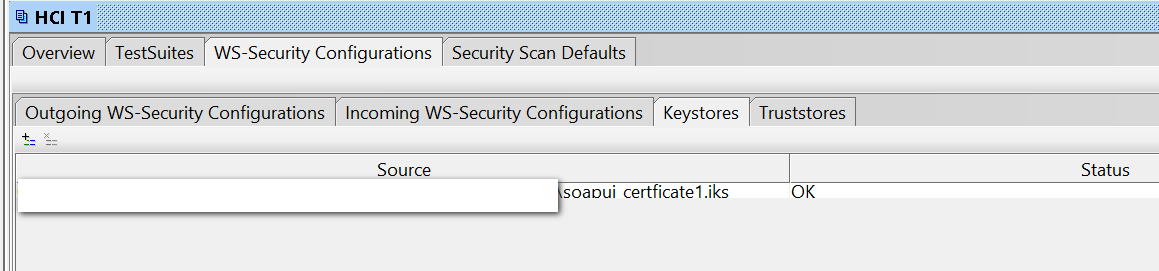

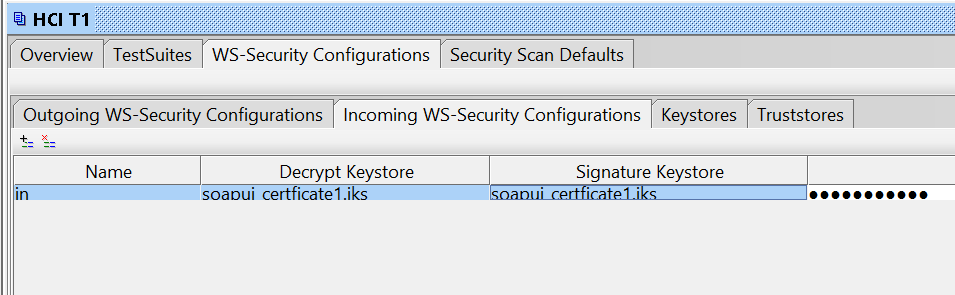

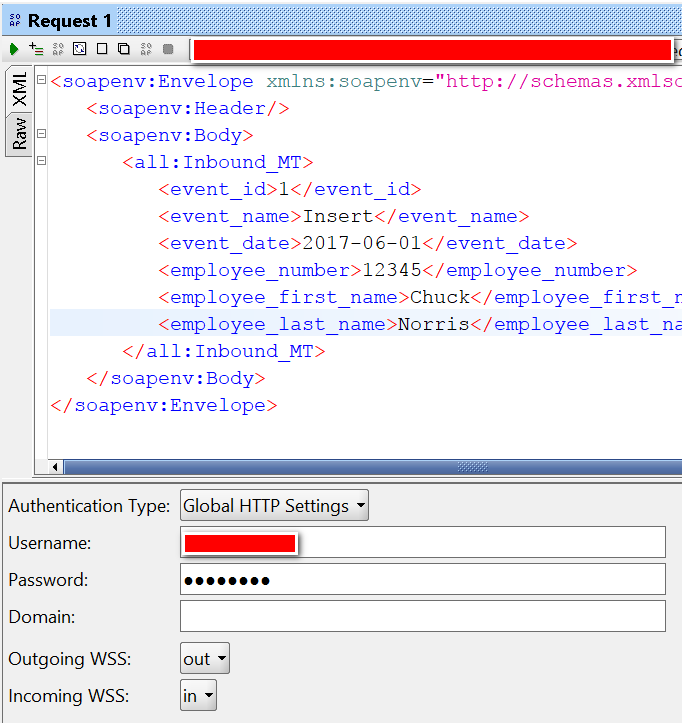

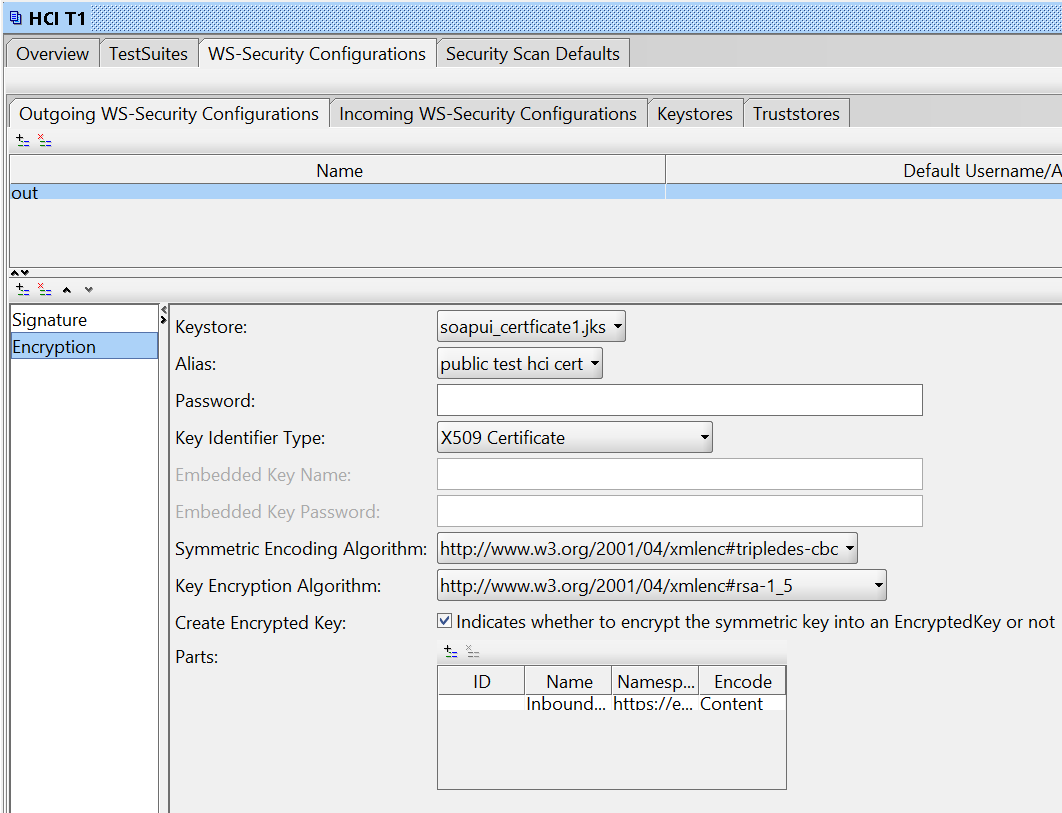

He aquí mi arreglo:

Sin embargo, estoy teniendo problemas para usar el cliente WCF.

Miapp.config

    <bindings>
      <customBinding>
        <binding name="Example_TestBinding">
          <security defaultAlgorithmSuite="TripleDesRsa15"
                    authenticationMode="MutualCertificate"
                    requireDerivedKeys="false"
                    includeTimestamp="false"
                    messageProtectionOrder="SignBeforeEncrypt"
                    messageSecurityVersion="WSSecurity10WSTrust13WSSecureConversation13WSSecurityPolicy12BasicSecurityProfile10"
                    requireSignatureConfirmation="false">
            <localClientSettings detectReplays="true"/>
            <localServiceSettings detectReplays="true"/>
          </security>
          <textMessageEncoding messageVersion="Soap11"/>
          <httpsTransport authenticationScheme="Basic" manualAddressing="false" maxReceivedMessageSize="524288000" transferMode="Buffered"/>
        </binding>
      </customBinding>
    </bindings>
  <client>
    <endpoint
      address="https://blabla.hana.ondemand.com/Example_Test"
      binding="customBinding"
      bindingConfiguration="Example_TestBinding"
      contract="WebServiceTest.Example_Test"
      name="Example_Test"
     />
  </client>

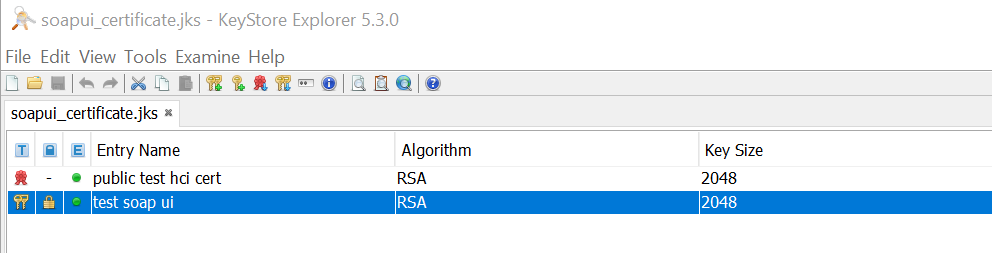

Usando Keystore Explorer exporto ambos certificados de JKS como:

public_test_hci_cert.certest_soap_ui.p12

Llamada de servicio web:

            var client = new Example_TestClient();
            client.ClientCredentials.UserName.UserName = "user";
            client.ClientCredentials.UserName.Password = "pass";

            X509Certificate2 certClient = new X509Certificate2(certClientPath, certClientPassword);
            client.ClientCredentials.ClientCertificate.Certificate = certClient;

            X509Certificate2 certService= new X509Certificate2(certServicePath);
            client.ClientCredentials.ServiceCertificate.DefaultCertificate = certService;

            var response = client.Example_Test(requestObj);

La solicitud llega perfectamente al servidor, pero parece que WCF no entiende la respuesta ya que recibo esta excepción:

"The EncryptedKey clause was not wrapped with the required
encryption token 'System.IdentityModel.Tokens.X509SecurityToken'."
    at System.ServiceModel.Security.WSSecurityJan2004.WrappedKeyTokenEntry.CreateWrappedKeyToken(String id, String encryptionMethod, String carriedKeyName, SecurityKeyIdentifier unwrappingTokenIdentifier, Byte[] wrappedKey, SecurityTokenResolver tokenResolver)\r\n ...

Service Trace ofrece:

The security protocol cannot verify the incoming message

ACTUALIZACIÓN1: simplificó la tarea al usar el mismo certificado para la firma y el cifrado. Mismo mensaje

ACTUALIZACIÓN2: Escribí CustomTextMessageEncoder donde descifro manualmente el cuerpo del mensaje y funciona. Sin embargo, devolverlo en ReadMessage aún arroja el error.

    public override Message ReadMessage(ArraySegment<byte> buffer, BufferManager bufferManager, string contentType)
    {
        var msgContents = new byte[buffer.Count];
        Array.Copy(buffer.Array, buffer.Offset, msgContents, 0, msgContents.Length);
        bufferManager.ReturnBuffer(buffer.Array);
        var message = Encoding.UTF8.GetString(msgContents);

        //return ReadMessage(Decryptor.DecryptBody(message), int.MaxValue);
        var stream = new MemoryStream(Encoding.UTF8.GetBytes(message));
        return ReadMessage(stream, int.MaxValue);
    }

    public static MemoryStream DecryptBody(string xmlResponse)
    {
        X509Certificate2 cert = new X509Certificate2(clientCertPath, certPass);
        SymmetricAlgorithm algorithm = new TripleDESCryptoServiceProvider();

        XmlDocument xmlDoc = new XmlDocument();
        xmlDoc.PreserveWhitespace = true;
        xmlDoc.LoadXml(xmlResponse);

        XmlElement encryptedKeyElement = xmlDoc.GetElementsByTagName("EncryptedKey", XmlEncryptionStrings.Namespace)[0] as XmlElement;
        XmlElement keyCipherValueElement = encryptedKeyElement.GetElementsByTagName("CipherValue", XmlEncryptionStrings.Namespace)[0] as XmlElement;
        XmlElement encryptedElement = xmlDoc.GetElementsByTagName("EncryptedData", XmlEncryptionStrings.Namespace)[0] as XmlElement;

        var key = Convert.FromBase64String(keyCipherValueElement.InnerText);

        EncryptedData edElement = new EncryptedData();
        edElement.LoadXml(encryptedElement);
        EncryptedXml exml = new EncryptedXml();

        algorithm.Key = (cert.PrivateKey as RSACryptoServiceProvider).Decrypt(key, false);

        byte[] rgbOutput = exml.DecryptData(edElement, algorithm);
        exml.ReplaceData(encryptedElement, rgbOutput);

        //var body = Encoding.UTF8.GetString(rgbOutput);

        MemoryStream ms = new MemoryStream();
        xmlDoc.Save(ms);
        return ms;
    }
