рабатываю (NASM + GCC для ELF64)PoC который использует гаджет-призрак, который измеряет время доступа к набору строк кэша (FLUSH + RELOAD).
Как я могу сделать надежный гаджет призрак?
Я полагаю, что понимаю теорию, лежащую в основе техники FLUSH + RELOAD, однако на практике, несмотря на некоторый шум, я не могу произвести работающий PoC.
Поскольку я использую счетчик меток времени и нагрузки очень регулярные, я использую этот скрипт, чтобы отключить предварительные выборки, турбо-буст и фиксировать / стабилизировать частоту процессора:
#!/bin/bash
sudo modprobe msr
#Disable turbo
sudo wrmsr -a 0x1a0 0x4000850089
#Disable prefetchers
sudo wrmsr -a 0x1a4 0xf
#Set performance governor
sudo cpupower frequency-set -g performance
#Minimum freq
sudo cpupower frequency-set -d 2.2GHz
#Maximum freq
sudo cpupower frequency-set -u 2.2GHz
У меня есть непрерывный буфер, выровненный на 4 КБ, достаточно большой, чтобы охватить 256 строк кэша, разделенных целым числомGAP линий.
SECTION .bss ALIGN=4096
buffer: resb 256 * (1 + GAP) * 64
Я использую эту функцию, чтобы очистить 256 строк.
flush_all:
lea rdi, [buffer] ;Start pointer
mov esi, 256 ;How many lines to flush
.flush_loop:
lfence ;Prevent the previous clflush to be reordered after the load
mov eax, [rdi] ;Touch the page
lfence ;Prevent the current clflush to be reordered before the load
clflush [rdi] ;Flush a line
add rdi, (1 + GAP)*64 ;Move to the next line
dec esi
jnz .flush_loop ;Repeat
lfence ;clflush are ordered with respect of fences ..
;.. and lfence is ordered (locally) with respect of all instructions
ret
Функция проходит по всем строкам, касаясь каждой страницы между ними (каждая страница более одного раза) и сбрасывая каждую строку.
Затем я использую эту функцию для профилирования доступа.
profile:
lea rdi, [buffer] ;Pointer to the buffer
mov esi, 256 ;How many lines to test
lea r8, [timings_data] ;Pointer to timings results
mfence ;I'm pretty sure this is useless, but I included it to rule out ..
;.. silly, hard to debug, scenarios
.profile:
mfence
rdtscp
lfence ;Read the TSC in-order (ignoring stores global visibility)
mov ebp, eax ;Read the low DWORD only (this is a short delay)
;PERFORM THE LOADING
mov eax, DWORD [rdi]
rdtscp
lfence ;Again, read the TSC in-order
sub eax, ebp ;Compute the delta
mov DWORD [r8], eax ;Save it
;Advance the loop
add r8, 4 ;Move the results pointer
add rdi, (1 + GAP)*64 ;Move to the next line
dec esi ;Advance the loop
jnz .profile
ret
MCVE дается в приложении ирепозиторий доступен для клонирования.
Когда собран сGAP
установить в 0, связать и выполнить сtaskset -c 0

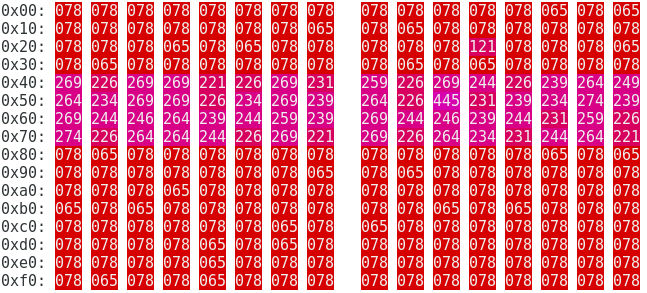

циклы, необходимые для извлечения каждой строки, показаны ниже.
Только 64 строки загружены из памяти.
Выход стабильный на разных пробегах. Если я установлюGAP
в 1 только 32 строки извлекаются из памяти, конечно 64 * (1 + 0) * 64 = 32 * (1 + 1) * 64 = 4096, так что это может быть связано с подкачкой?
Если магазин выполнендо профилирование (но после сброса) на одну из первых 64 строк, выход меняется на этот
Любой магазин с другими строками дает первый тип вывода.
Я подозреваю, что математика сломана, но мне нужно еще пару глаз, чтобы выяснить, где.
РЕДАКТИРОВАТЬ
Хади Брайс указал неправильное использование энергозависимого регистра, после исправления того, что выходные данные теперь несовместимы.
Я вижу в основном прогоны, в которых время ограничено (~ 50 циклов), а иногда и там, где время выше (~ 130 циклов).
Я не знаю, откуда взялась цифра в 130 циклов (слишком мало для памяти, слишком много для кеша?).
Код исправлен в MCVE (и хранилище).
Если сохранение до одной из первых строк выполняется перед профилированием, в выводе не отражается никаких изменений.
