multiplot - укладка 3 графиков на более крупный холст
Я безуспешно пытался сложить вместе 3 графика в многосюжетном макете на холсте с соотношением 2: 3 (ширина по высоте).
set terminal postscript eps enhanced "Helvetica" 24 color
set output "data.eps"
set timefmt "%s"
#set size 1.0,1.5
#set bmargin 2
#set tmargin 2
set size 1.0,1.5
set multiplot layout 3,1
set size 1.0,0.5
set tmargin 2
set bmargin 0
set ylabel 'Distance'
set format x ""
set ytics nomirror font "Helvetica,10"
set key top
plot "trace1.dat" using 1:3 axes x1y1 title "distances" with lines lw 2 lc rgb 'blue'
set size 1.0,0.5
set bmargin 0
set tmargin 0
set ylabel 'Power (W)'
set format x ""
set ytics nomirror font "Helvetica,10"
set key top
plot "trace2.dat" using 1:2 axes x1y1 title "device" with lines lw 2 lc rgb 'red'
set size 1.0,0.5
set bmargin
set tmargin 0
set xdata time
set ylabel 'Power (W)'
set xlabel 'Time (EST)' offset 0,-2.8 font "Helvetica,32
set format x "%b %d, %H:%M"
set ytics nomirror font "Helvetica,10"
set xtics nomirror rotate by 90 offset 0,-2.0 out font "Helvetica,10"
set key top
plot "trace3.dat" using 1:2 axes x1y1 title "aggr" with lines lw 2 lc rgb 'blue'
unset multiplot

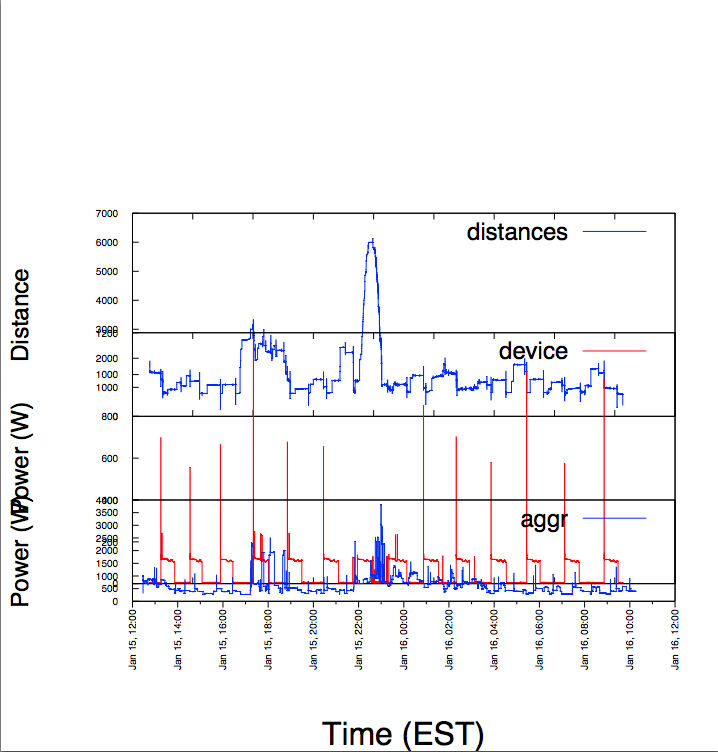

Когда я делаю что-то вроде выше, я получаю график, показанный ниже, тамs много пустого пространства в верхней части холста, и 3 многоплановых графика, кажется, перекрывают друг друга.
Любая помощь или указатель будет принята с благодарностью.
