¿Por qué está envolviendo texto en Jasper Report 6.3?

Question

Sep 03, 2016, 10:13 AM

¿Por qué está envolviendo texto en Jasper Report 6.3?

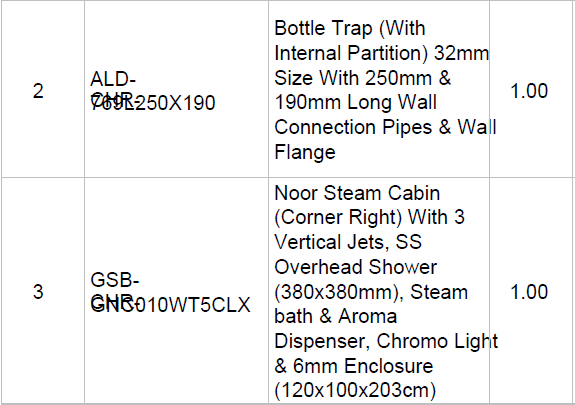

Utilizo la biblioteca Jasper Report 6.3 para exportar mi informe a formato PDF. Cuando exporto si la longitud de la cadena es mayor que el ancho del campo de texto, se ajusta automáticamente el texto de jaspe, pero en este caso, algunos textos se anulan como en la imagen de abajo

Mis propiedades de campo de texto:

stretch with overflow,
left indent: 3px,
right indent: 8px,
stretch type: Relative to Tallest object

Código de muestra

<?xml version="1.0" encoding="UTF-8"?>
<!-- Created with Jaspersoft Studio version 6.2.2.final using JasperReports Library version 6.2.2  -->
<!-- 2016-09-03T20:46:49 -->
<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="item_wise_mrp_with_image" pageWidth="595" pageHeight="842" whenNoDataType="BlankPage" columnWidth="575" leftMargin="10" rightMargin="10" topMargin="10" bottomMargin="10" whenResourceMissingType="Key" uuid="b7a946cd-ab42-4abe-b2f7-e616b2d38506">
    <property name="com.jaspersoft.studio.data.defaultdataadapter" value="One Empty Record"/>
    <parameter name="companyName" class="java.lang.String" isForPrompting="false"/>
    <parameter name="companyAddress" class="java.lang.String" isForPrompting="false"/>
    <parameter name="quoteNumber" class="java.lang.Integer" isForPrompting="false"/>
    <parameter name="quoteDate" class="java.util.Date" isForPrompting="false"/>
    <parameter name="customerName" class="java.lang.String" isForPrompting="false"/>
    <parameter name="customerAddress" class="java.lang.String"/>
    <parameter name="emailId" class="java.lang.String" isForPrompting="false"/>
    <parameter name="city" class="java.lang.String" isForPrompting="false">
        <parameterDescription><![CDATA[]]></parameterDescription>
    </parameter>
    <parameter name="mobileNo" class="java.lang.String" isForPrompting="false"/>
    <parameter name="clientMsg" class="java.lang.String"/>
    <parameter name="m_nrp" class="java.lang.String" isForPrompting="false"/>
    <parameter name="companyMobile" class="java.lang.String" isForPrompting="false"/>
    <parameter name="companyEmail" class="java.lang.String" isForPrompting="false"/>
    <queryString>
        <![CDATA[]]>
    </queryString>
    <field name="totalAmount" class="java.lang.Double"/>
    <field name="itemCode" class="java.lang.String"/>
    <field name="itemDescription" class="java.lang.String"/>
    <field name="quantity" class="java.lang.Integer"/>
    <field name="mrp" class="java.lang.Double"/>
    <field name="nrp" class="java.lang.Double"/>
    <variable name="tqty" class="java.lang.Integer" calculation="Sum">
        <variableExpression><![CDATA[$F{quantity}]]></variableExpression>
    </variable>
    <variable name="tprc" class="java.lang.Double" calculation="Sum">
        <variableExpression><![CDATA[$P{m_nrp}.equals( "MRP" )? $F{mrp}:$F{nrp}]]></variableExpression>
    </variable>
    <variable name="tamt" class="java.lang.Double" calculation="Sum">
        <variableExpression><![CDATA[$F{totalAmount}]]></variableExpression>
    </variable>
    <background>
        <band splitType="Stretch"/>
    </background>
    <detail>
        <band height="96" splitType="Stretch">
            <property name="com.jaspersoft.studio.unit.height" value="pixel"/>
            <frame>
                <reportElement x="0" y="0" width="575" height="96" uuid="7beb5f8d-7645-4156-95be-bef2533acba2">
                    <property name="com.jaspersoft.studio.unit.height" value="pixel"/>
                </reportElement>
                <box>
                    <leftPen lineWidth="0.25" lineColor="#BFBFBF"/>
                    <bottomPen lineWidth="0.25" lineColor="#BFBFBF"/>
                    <rightPen lineWidth="0.25" lineColor="#BFBFBF"/>
                </box>
                <textField>
                    <reportElement stretchType="RelativeToBandHeight" x="0" y="0" width="44" height="96" uuid="8b74ae61-7a6a-4cd7-a70d-857a5e434feb">
                        <property name="com.jaspersoft.studio.unit.width" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.height" value="pixel"/>
                    </reportElement>
                    <box bottomPadding="2" rightPadding="0">
                        <topPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <leftPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <bottomPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <rightPen lineWidth="0.25" lineStyle="Solid" lineColor="#BFBFBF"/>
                    </box>
                    <textElement textAlignment="Center" verticalAlignment="Middle">
                        <font fontName="Calibri" size="11"/>
                        <paragraph leftIndent="3" rightIndent="5"/>
                    </textElement>
                    <textFieldExpression><![CDATA[$V{REPORT_COUNT}]]></textFieldExpression>
                </textField>
                <textField isStretchWithOverflow="true" isBlankWhenNull="true">
                    <reportElement stretchType="RelativeToBandHeight" x="45" y="0" width="100" height="96" uuid="b6e44305-fe66-4c42-ac7e-c22827e26baf">
                        <property name="com.jaspersoft.studio.unit.x" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.width" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.height" value="pixel"/>
                    </reportElement>
                    <box bottomPadding="2" rightPadding="0">
                        <topPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <leftPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <bottomPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <rightPen lineWidth="0.25" lineStyle="Solid" lineColor="#BFBFBF"/>
                    </box>
                    <textElement textAlignment="Left" verticalAlignment="Middle">
                        <font fontName="Calibri" size="11"/>
                        <paragraph lineSpacingSize="0.0" leftIndent="3" rightIndent="8"/>
                    </textElement>
                    <textFieldExpression><![CDATA[$P{customerAddress}]]></textFieldExpression>
                </textField>
                <textField isStretchWithOverflow="true" isBlankWhenNull="true">
                    <reportElement stretchType="RelativeToBandHeight" x="145" y="0" width="235" height="96" uuid="c7f1aaf5-c7fb-4e24-8283-c9d5a819feef">
                        <property name="com.jaspersoft.studio.unit.x" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.width" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.height" value="pixel"/>
                    </reportElement>
                    <box bottomPadding="3" rightPadding="0">
                        <topPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <leftPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <bottomPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <rightPen lineWidth="0.25" lineStyle="Solid" lineColor="#BFBFBF"/>
                    </box>
                    <textElement textAlignment="Left" verticalAlignment="Middle">
                        <font fontName="Calibri" size="11"/>
                        <paragraph lineSpacingSize="0.0" leftIndent="3" rightIndent="12"/>
                    </textElement>
                    <textFieldExpression><![CDATA[$P{clientMsg}]]></textFieldExpression>
                </textField>
                <textField>
                    <reportElement key="" stretchType="RelativeToBandHeight" x="380" y="0" width="40" height="96" uuid="70f88651-eefc-49df-898c-5a1eade29bac">
                        <property name="com.jaspersoft.studio.unit.x" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.width" value="pixel"/>
                        <property name="com.jaspersoft.studio.unit.height" value="pixel"/>
                    </reportElement>
                    <box bottomPadding="2" rightPadding="0">
                        <topPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <leftPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <bottomPen lineWidth="0.0" lineStyle="Solid" lineColor="#000000"/>
                        <rightPen lineWidth="0.25" lineStyle="Solid" lineColor="#BFBFBF"/>
                    </box>
                    <textElement textAlignment="Center" verticalAlignment="Middle">
                        <font fontName="Calibri" size="11"/>
                        <paragraph leftIndent="3" rightIndent="5"/>
                    </textElement>
                    <textFieldExpression><![CDATA[$F{quantity}]]></textFieldExpression>
                </textField>
            </frame>
        </band>
    </detail>
</jasperReport>

Este es un código de muestra. solíaJasper Studio. Para reproducir este error, ingrese las siguientes entradas

dirección del cliente: ALD-CHR-769L250X190
clientMsg: Trampa para botellas (con partición interna) Tamaño de 32 mm Con tubos de conexión de pared larga de 250 mm y 190 mm y brida de pared

¿Como puedó resolver esté problema?
